Earthing & Grounding Solutions

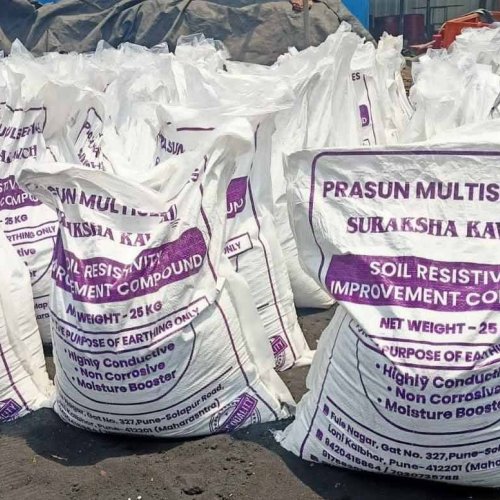

Backfill Chemical Compound

• ⚡ Ensures low resistance connection between electrode & soil.
• Made of graphite + natural earth minerals → highly conductive & non-corrosive.
• Hygroscopic: retains moisture for long time, ensuring stable resistance.
• Environment friendly, suitable for varied soil conditions.
• Prevents corrosion, increases electrode life.
• Compatible with copper, GI, MS & stainless steel grounding systems.
• Does not contain hazardous chemicals, will not leach into soil.
• No need of recharging, maintenance-free grounding solution.
• Stable performance even in dry conditions.
• Available in 15 kg, 25 kg & 50 kg bags.

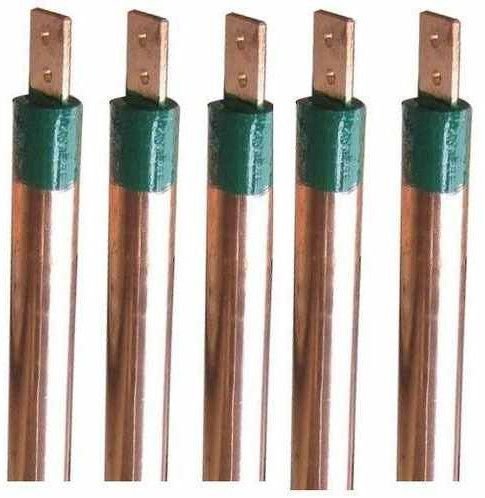

Copper Bonded And Pure Copper Earthing Electrode

• High-quality electrodes complying with toughest grounding regulations.
• Copper bonded to low-carbon, high-tensile steel core (99.9% purity).
• Copper layer thickness: 0.1 – 0.25 mm (100–250 microns).
• Excellent strength (up to 600 N/mm²) & long service life.
• Resistant to oxidation & corrosion → ensures durability.
• Low maintenance, fast fault current dissipation & easy installation.
• Works well in soil with pH 5.0 – 8.0.

Earthing Strips

• ⚡ Diverts fault current safely to ground, protecting equipment.
• Made of superior copper, aluminum, or galvanized iron (GI).
• Flexibility: Thickness 3–6 mm, width 15–100 mm → suitable for varied applications.
• Resistant to corrosion & ensures reliable fault current dissipation.
• Copper strips: excellent conductivity & long service life.
• GI strips: cost-effective, durable, and compliant with ISI standards.
• Galvanized coating: min. 80 microns, width 25–75 mm, thickness 3–12 mm.
• Low maintenance, long-lasting & suitable for all soil conditions.

Earthing Strips

• Diverts fault current safely to ground, protecting equipment.
• Made of superior copper, aluminum, or galvanized iron (GI).
• Flexibility: Thickness 3–6 mm, width 15–100 mm → suitable for varied applications.
• Resistant to corrosion & ensures reliable fault current dissipation.
• Copper strips: excellent conductivity & long service life.
• GI strips: cost-effective, durable, and compliant with ISI standards.
• Galvanized coating: min. 80 microns, width 25–75 mm, thickness 3–12 mm.
• Low maintenance, long-lasting & suitable for all soil conditions.

Earthing Strips

• ⚡ Diverts fault current safely to ground, protecting equipment.
• Made of superior copper, aluminum, or galvanized iron (GI).
• Flexibility: Thickness 3–6 mm, width 15–100 mm → suitable for varied applications.
• Resistant to corrosion & ensures reliable fault current dissipation.
• Copper strips: excellent conductivity & long service life.
• GI strips: cost-effective, durable, and compliant with ISI standards.
• Galvanized coating: min. 80 microns, width 25–75 mm, thickness 3–12 mm.
• Low maintenance, long-lasting & suitable for all soil conditions.

Copper Bonded And Pure Copper Earthing Electrode

• High-quality electrodes complying with toughest grounding regulations.
• Copper bonded to low-carbon, high-tensile steel core (99.9% purity).
• Copper layer thickness: 0.1 – 0.25 mm (100–250 microns).
• Excellent strength (up to 600 N/mm²) & long service life.
• Resistant to oxidation & corrosion → ensures durability.
• Low maintenance, fast fault current dissipation & easy installation.
• Works well in soil with pH 5.0 – 8.0.

• Environment-friendly, rust-proof, heavy-duty weatherproof polypropylene earth pit chamber.
• Dimensions (Round): Top Dia 254 mm, Bottom Dia 330 mm, Height 260 mm.
• Factory-built long holes for easy strip/wire access on four sides.
• Made from heavy-duty polyethylene → ensures extra durability & long life.

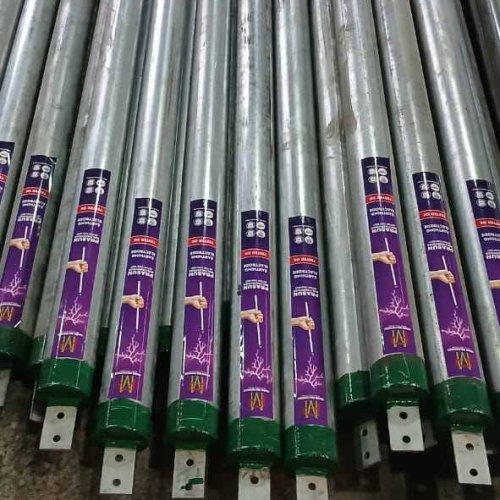

GI Earthing Electrode (SIP/PIP)

• Strip-in-Pipe & Pipe-in-Pipe design with hot-dip galvanizing (80–100 microns).
• Non-corrosive compound ensures long life & safe fault current dissipation.
• Available in 1m, 2m, 3m & 6m lengths as per IS 3043:1987.
• Effective in soil pH 5.0–8.0 with low maintenance needs.
• Easy & quick installation using chemical booster bags.

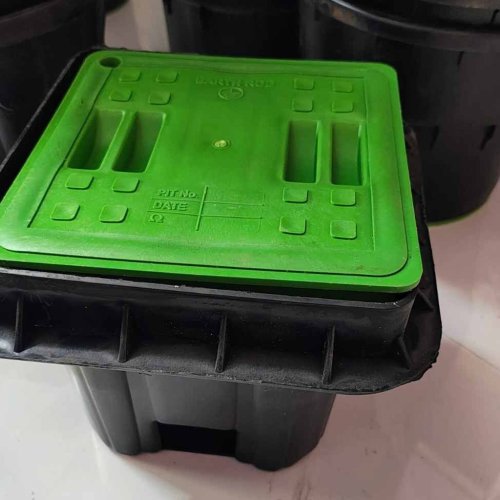

Earthing Chamber Cover (Square)

Environment-friendly, rust-proof, heavy-duty weatherproof polypropylene earth pit chamber.

• Dimensions (Square): Length 320 mm, Width 320 mm, Height 260 mm.
• Factory-built long holes for easy strip/wire access on four sides.
• Made from heavy-duty polyethylene → ensures extra durability & long life.
• Resistant to corrosion, chemicals, and environmental wear.
• Green Top Cap blends with outdoor surroundings.
• Rod placement ensures centrally positioned earth rod for easy clamping.
•  Stainless steel rustproof screws prevent loss during installation.
• Optional Earth Bar allows multiple earth connections in the
